Converter

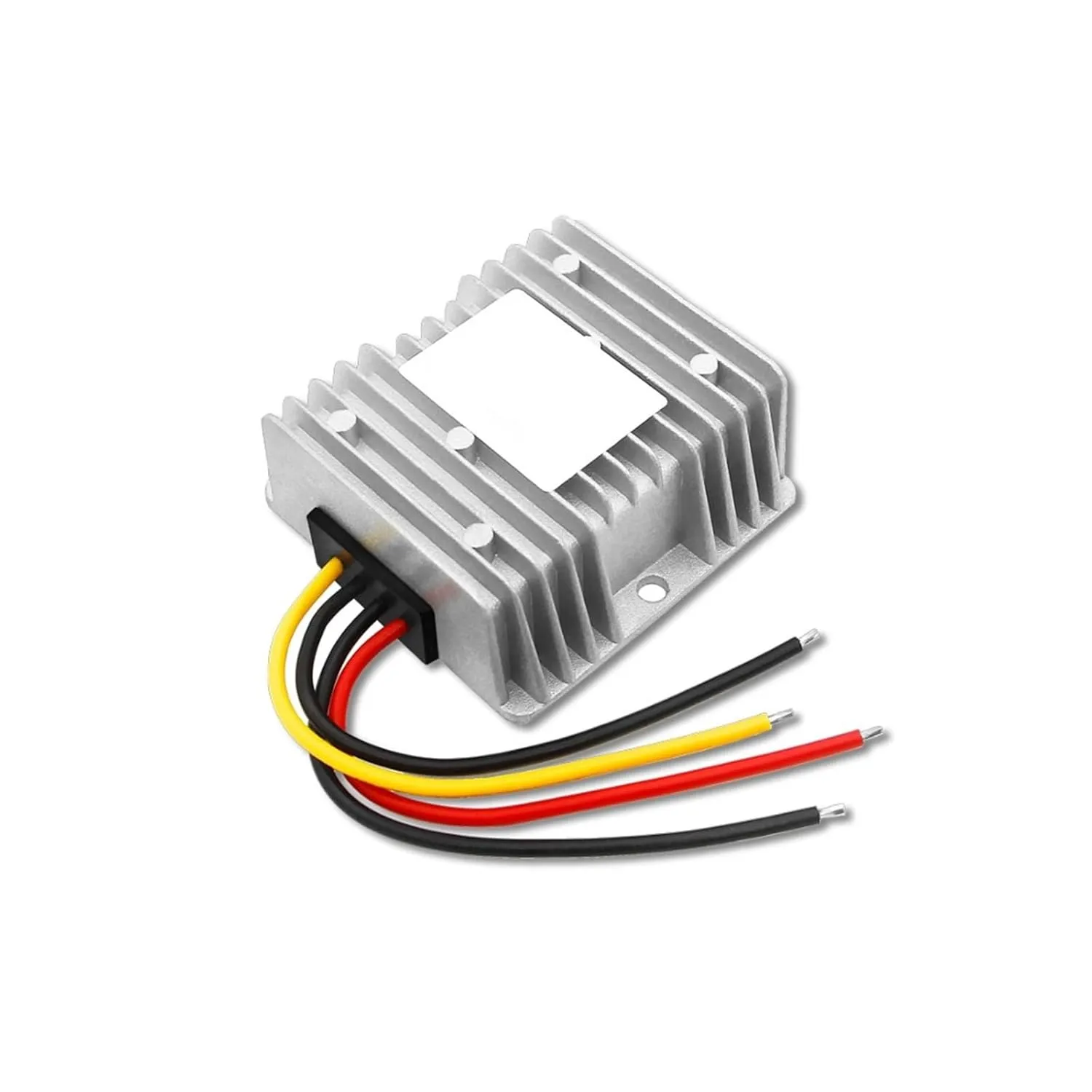

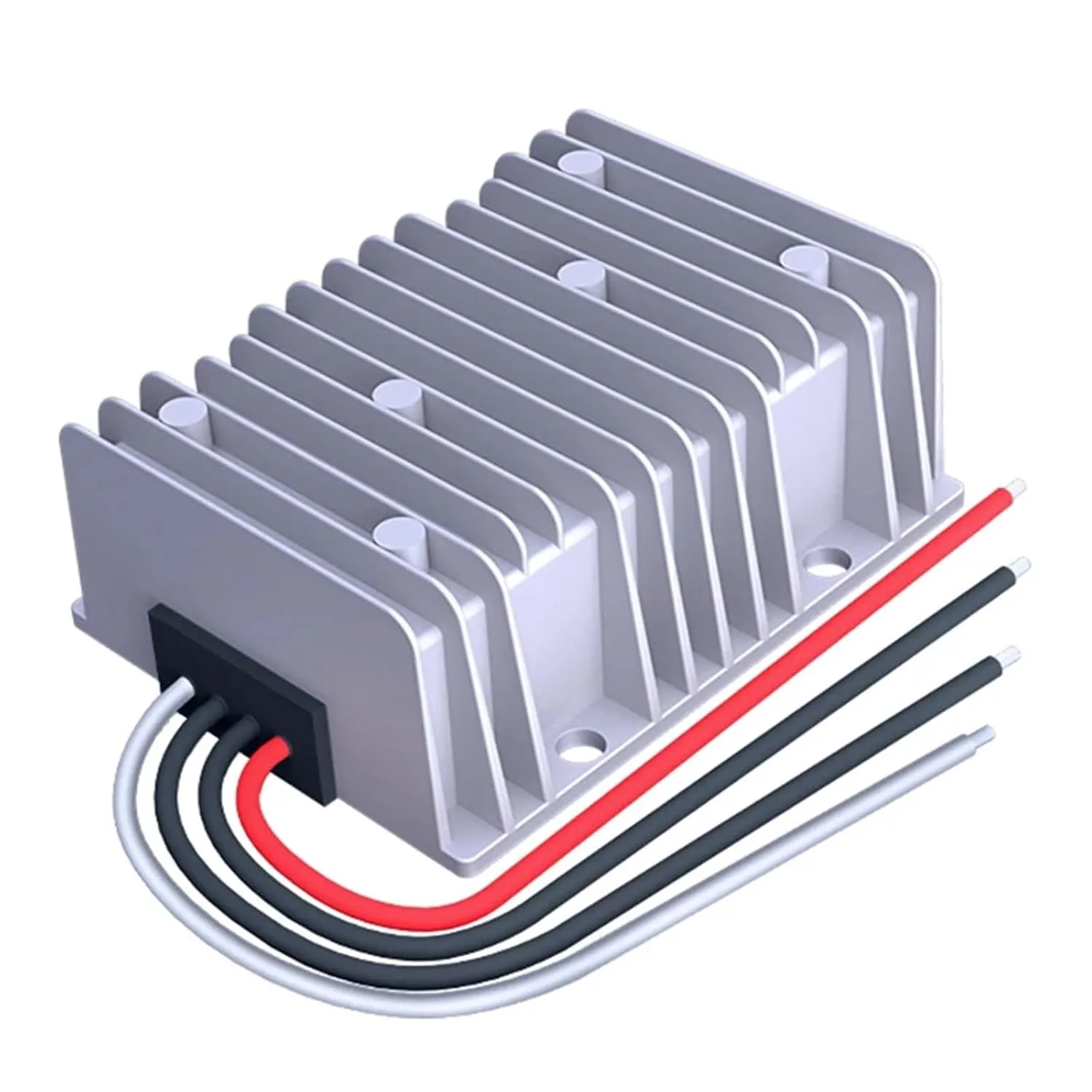

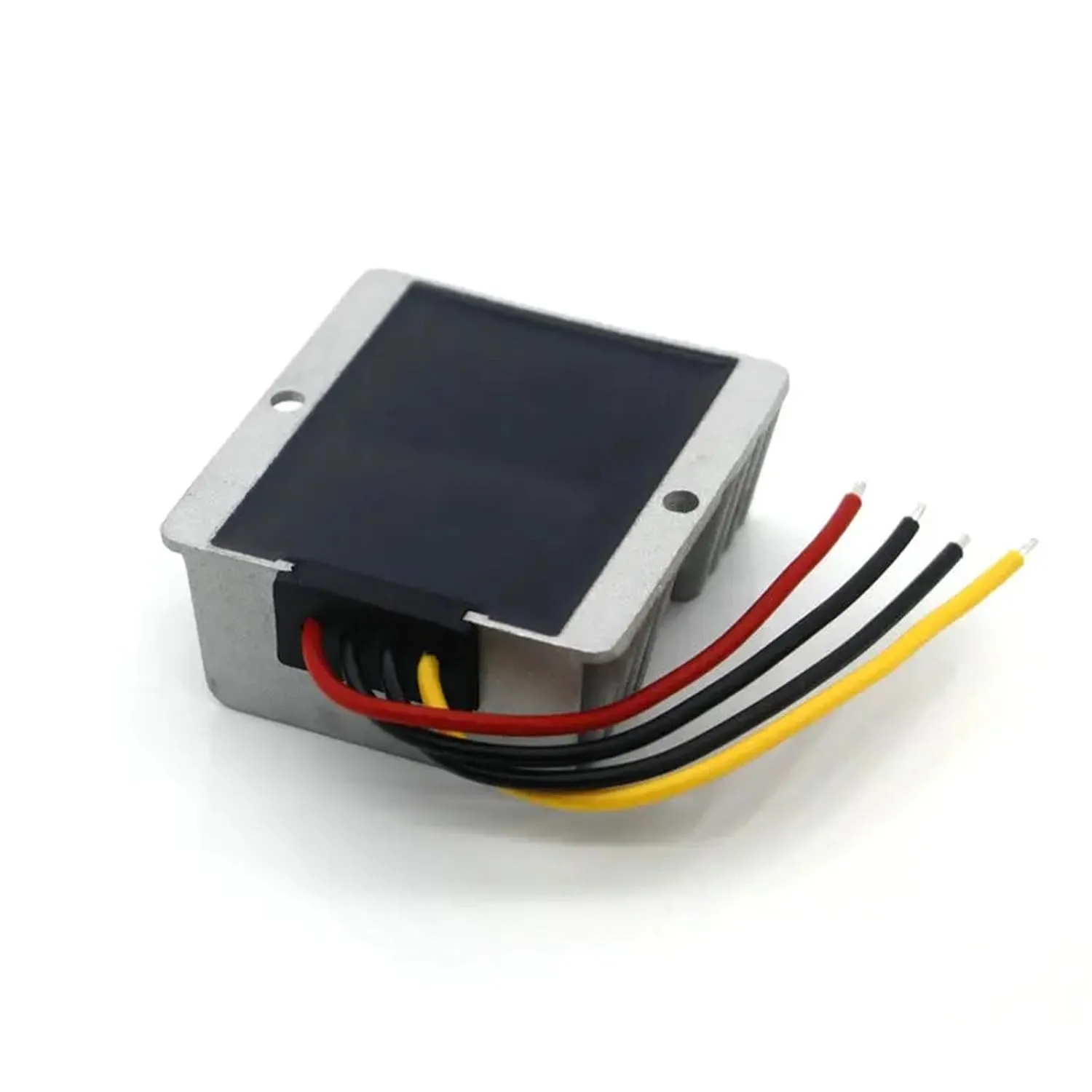

12v to 24v step up 3A 5A 8A 10A 12A 15A 20A boost power converter 24vdc voltage regulator
Model No. XW-12-24-72W~480W
Module Properties Non-isolated Module
InputVoltage 12V
InputVoltage Range 9-23V
Output Voltage 24V
Output Current 3A / 5A / 8A / 10A / 12A / 15A /20A
Output Power 72W/ 120W/ 192W / 240W / 288W/ 360W
Conversion Efficiency>93%
Ripple (Full load test) 40mV
No-loadCurrent 25mA
Working Temperature -40~80
Waterproof Rating IP67
Shell Material Aluminum
Size /Packing :
3A~15A Aluminum 74*74*32mm, 260g, Anti-static Bag
20A Aluminum 100*80*39mm, 550g, White Box
==========
Hign-concerned Chemical : None
Output Current : 3-15A
Output Frequency : 43hz
Model Number : XW-12-24-
Output Power : 201 - 300W
Type : DC/DC Converters
Weight : 260g
Size : 74*74*32MM
Output Type : SINGLE
Input voltage : 12V
Input voltage Range : 9-23V
Output Voltage : 24V
Conversion Efficiency :>93%
Working Temperature : -30°C to 80°C
Shell : Aluminum

• Package Dimensions ‏ : ‎ 11.81 x 7.87 x 3.94 inches; 1.76 ounces
• Department ‏ : ‎ unisex-adult
• Date First Available ‏ : ‎ May 17, 2025
• Manufacturer ‏ : ‎ SWVABYI
• Country of Origin ‏ : ‎ China
