- Speed(RPM): Shaft length 30mm
- Usage: BoAt,car,Electric Bicycle,Fan,Home Appliance
- Model number: 300/ 130 Gear motor DC3V
- Protect feature: Explosion-proof
- Commutation: Brush

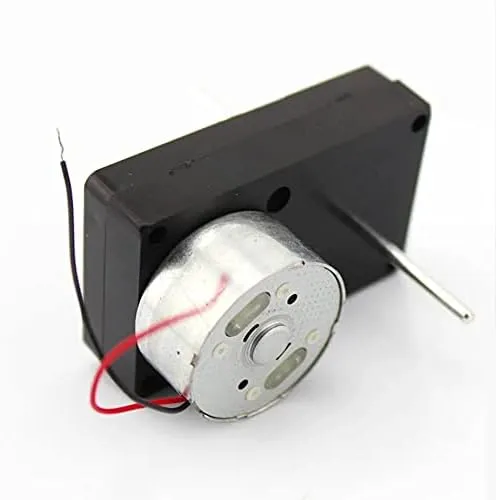

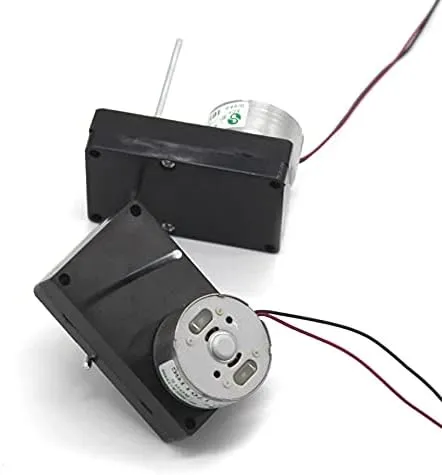

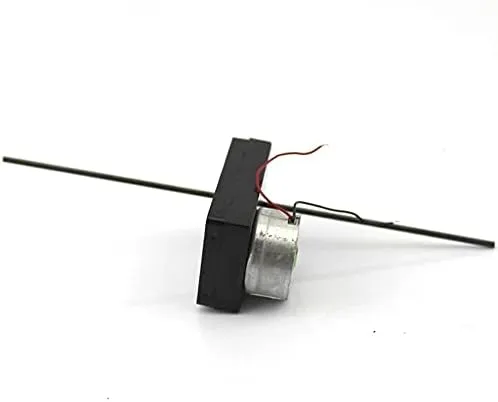

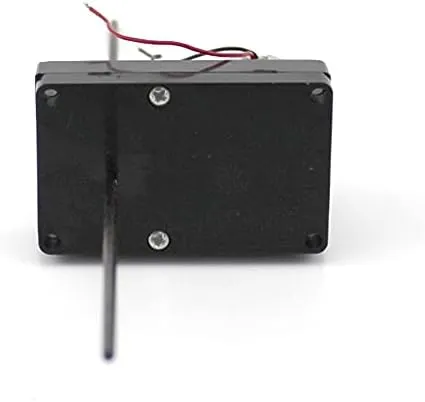

3048-300 gear motor (black). This product is a 300 DC motor based on the reducer, small and exquisite products, double shaft, shaft diameter is 2mm. This motor can not only use the battery box power supply, you can also use the solar panel power supply.
[Voltage range]: DC 1-5V
[Product parameters]: The following parameters are for reference only
3V current 0.03A speed 330 blocking current 0.24A
6v current 0.04A speed 540 blocking current 0.41A
[Output axis parameter]: shaft diameter 2mm,

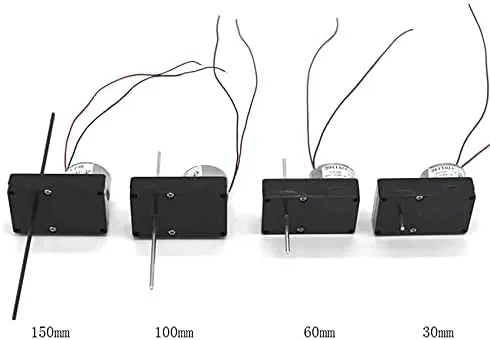

Axle length 30mm/60mm/100mm/150mm optional
[Shell size]: about 48*30*12mm
[Overall size]: about 48*30*25mm
[Fixed Aperture]: Aperture 2.5mm
[Product material]: Black ABS plastic
Item specifics:
Usage: BoAt,car,Electric Bicycle,Fan,Home Appliance
Model number: 300/ 130 Gear motor DC3V
Protect feature: Explosion-proof
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 1
Type: Micro Motor
Certification: CCC,ce,ROHS
Origin: Mainland China
Voltage: DC1V-5V DC3V
Dc 3v: 330rpm 0.03A
Dc 6v: 540rpm 0.04A
Shaft length: 30mm/60mm/80mm/100mm/150mm
