Name: ACOPOWER 800W Mono Black RV Solar System
SKU: 1112893

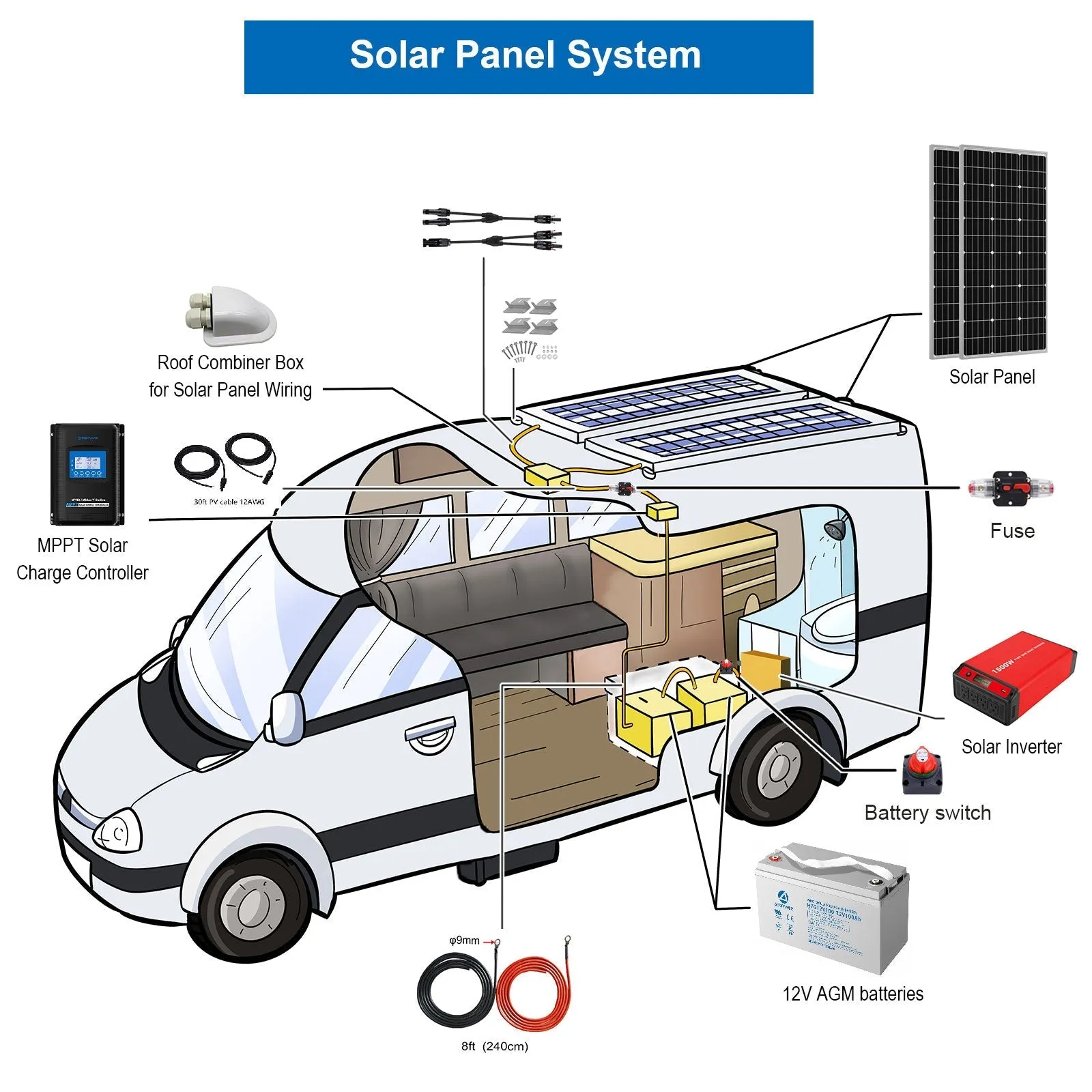

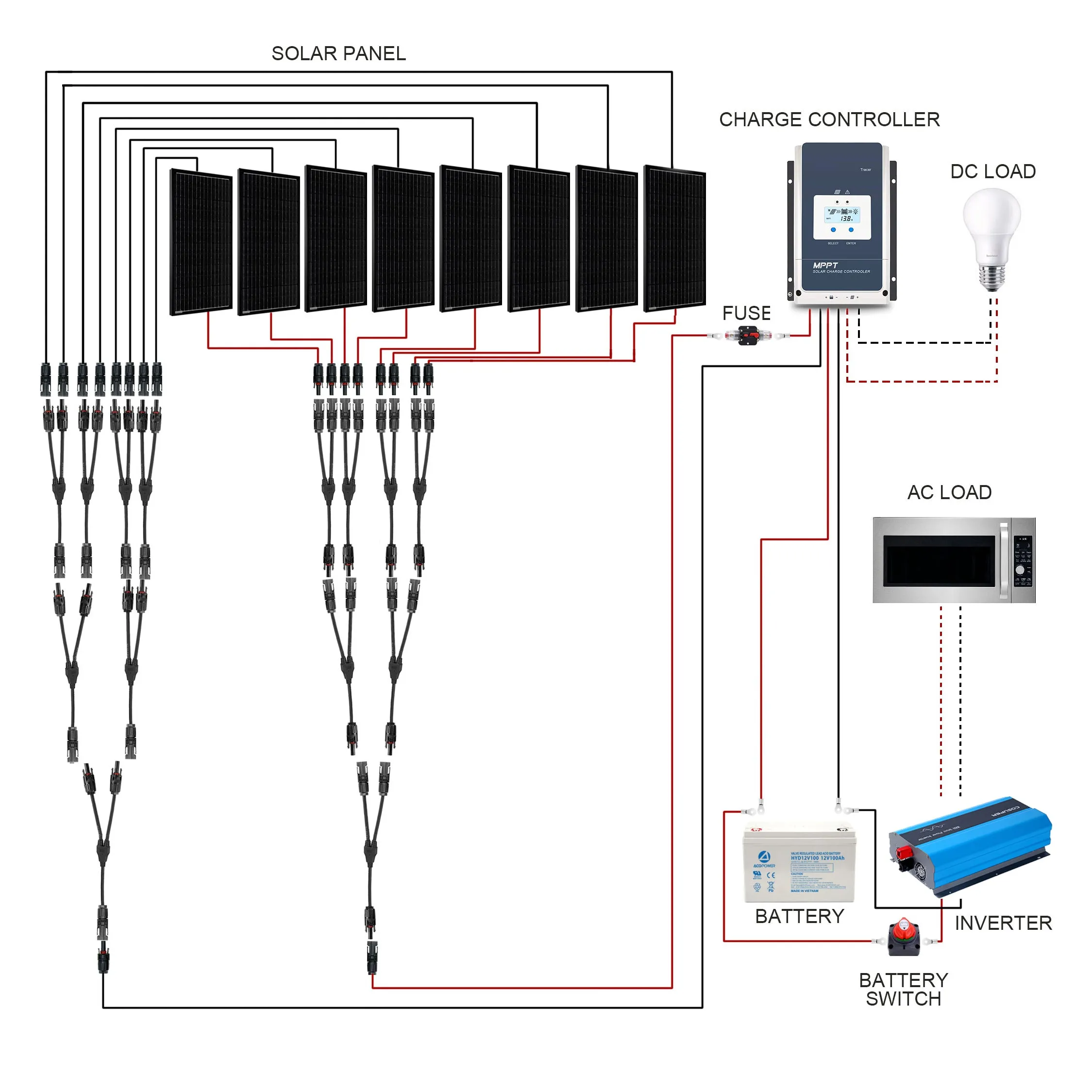

The ACOPOWER 800W Mono RV Solar System provides everything necessary for generating cost-efficient, renewable power from the sun! This is an ideal solar system solution for RVs, boats, cabins, and backup power sources. The 800 Watt Solar Kit comes complete with 8pcs 100 Watt Monocrystalline Solar Panels, 3000W 12VDC to 120AC Modified Sine Wave Power Inverter (Inverter Cables included), 4pcs 200Ah Gel Deep Cycle Battery, 60-Amp MPPT Solar Charge Controller, 50A Fuse, Battery Switch, and all essential cables and solar mounting Z Brackets.

All components and technical specifications are clearly depicted in the product photo above. The system is expandable and can be easily installed in most locations. It's powerful, reliable, and designed to work in the most extreme conditions. Even with minimal maintenance, the ACOPOWER 800W Mono RV Solar System provides reliable energy solutions for years to come.

ACOPOWER 800W Mono Black RV Solar System Features:

Solar charging will provide about 3840 Watt Hours (Wh) or 320 Amp hours of charge per day (depending on sunlight availability)
Perfect kit for having an off-grid 12-volt battery system. 3000 Watt Inverter provides plenty of AC power to run your household appliances and the battery bank will supply plenty of energy for moderate use; Designed for RVs, cabins, homes, boats, backup, and remote power use

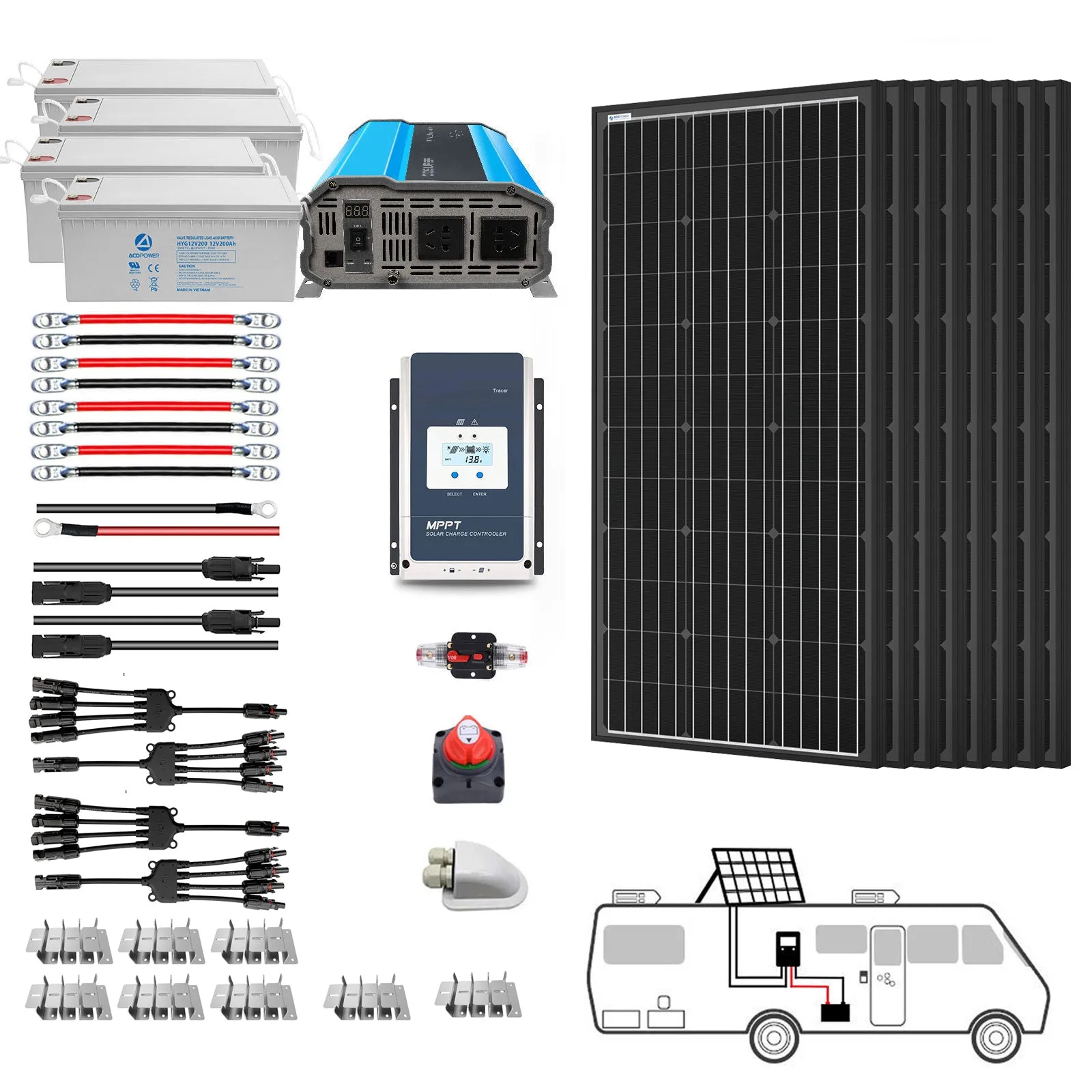

Complete kit includes 8pcs 100 Watt Monocrystalline Solar Panel, 4pcs 200Ah Gel(Maintenance Free) Deep Cycle Battery,3000W 3000 Watt DC to AC Power Inverter, 60-amp MPPT Solar Charge Controller (w/ LCD Display), a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets.

BUYER PROTECTION: We have an expert support staff. Should you feel dissatisfied, check out our easy return policy guidelines and reach out to us for any assistance.

ACOPOWER 800W Mono Black RV Solar System Specifications:

100W Monocrystalline Black Solar Panel

Nominal for 12V battery charger
Peak Power (Pmax):100W
Peak Circuit Voltage(Voc):22V
Max Power Voltage(Vmp):17.48V
Short Circuit Current(ISC):6.14A
Max Power Current(Imp):5.71A
Weight:12.8 lb
Dimension:40.2*20.1*1.4 Inch
Application Class: Class A

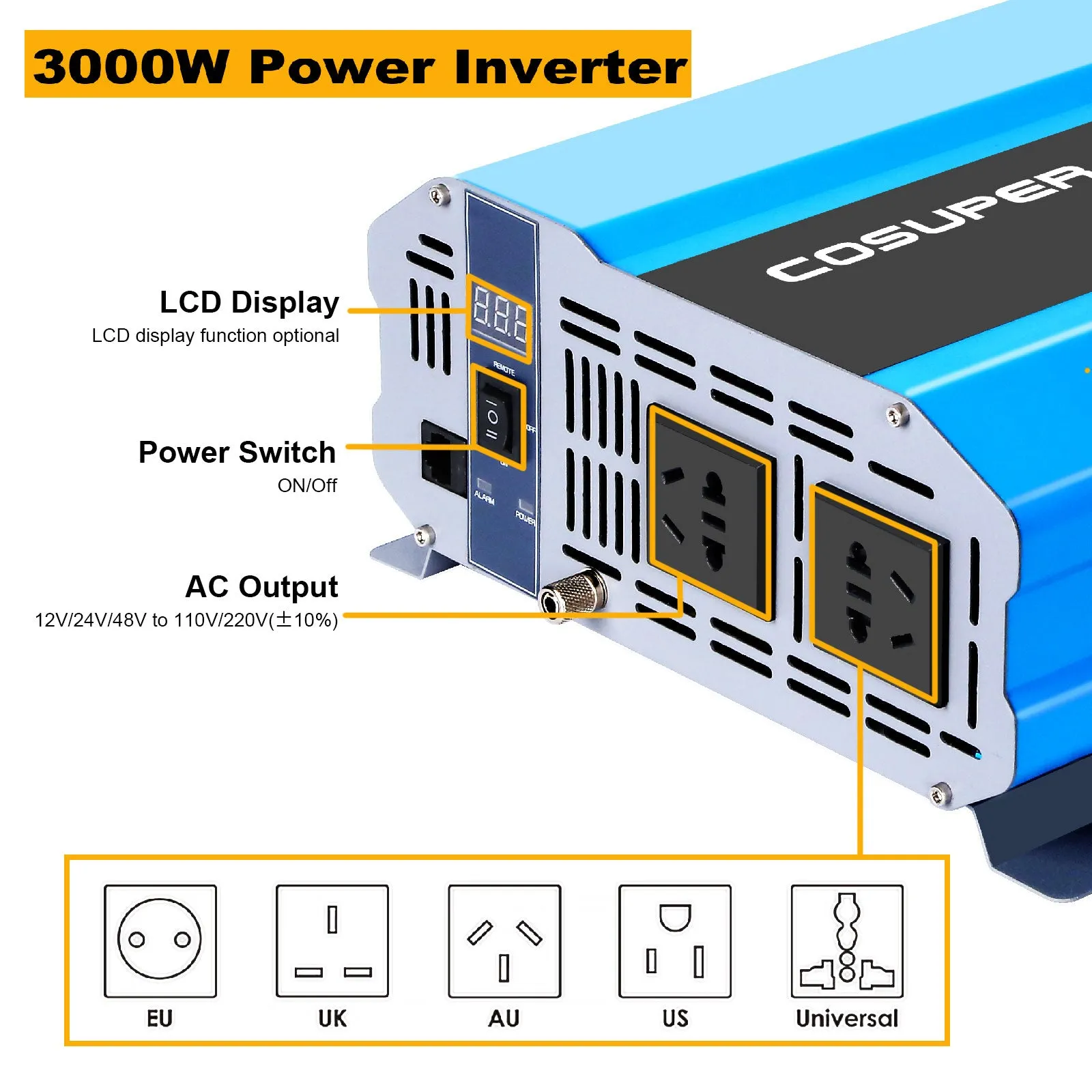

3000W Inverter 12VDC to 120VAC

Continuous output 3000W
Surge Power 6000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
Weight: 12.1lb
Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

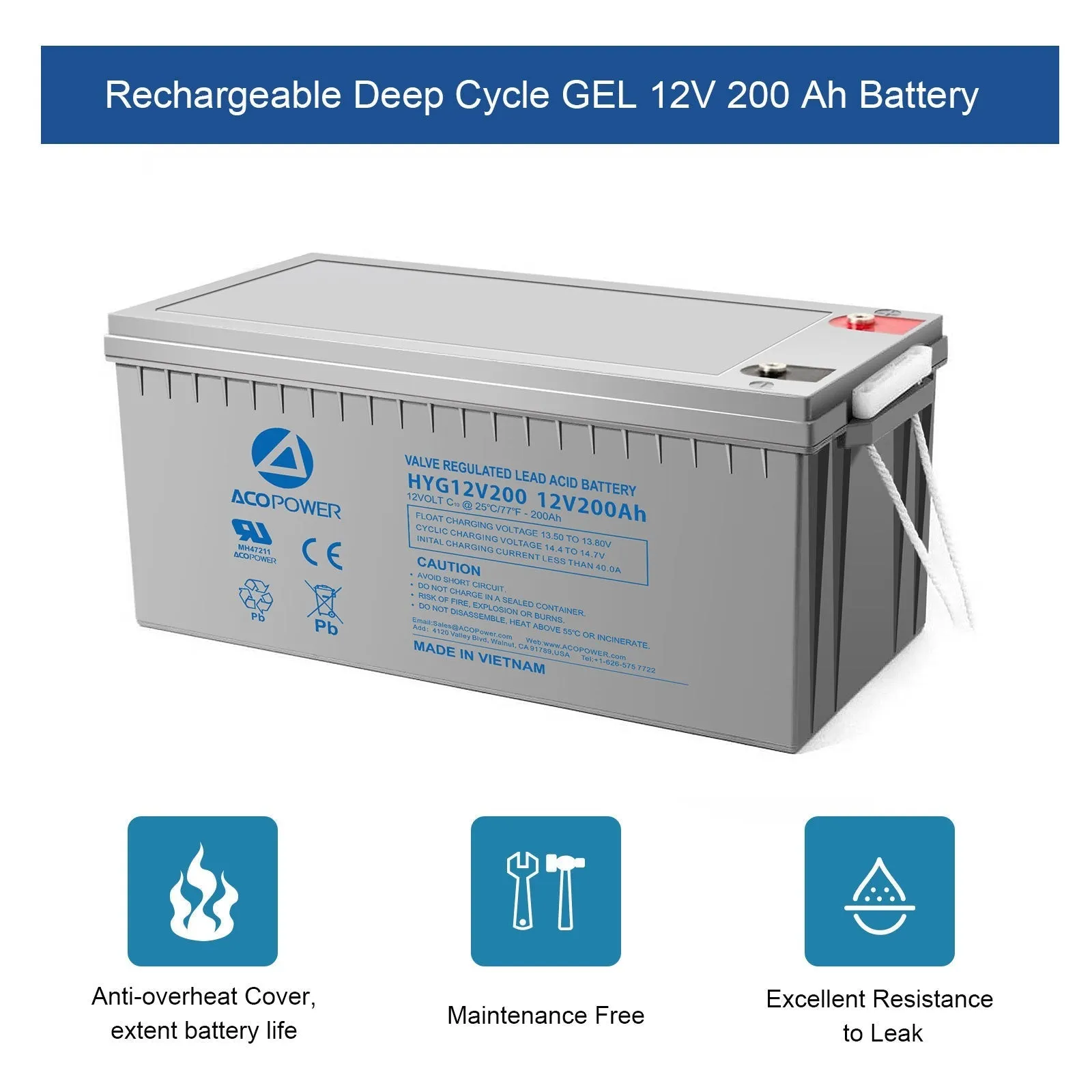

12V 200 Ah Rechargeable Deep Cycle GEL Battery

Nominal Voltage 12V
Rated capacity (10 hour rate): 200Ah
Dimension(inch):20.55x 9.37 (W) x 8.58 (H) inch; Total Height: 8.74inch
Approx. Weight: 62.5kg(137.5lbs)±3%

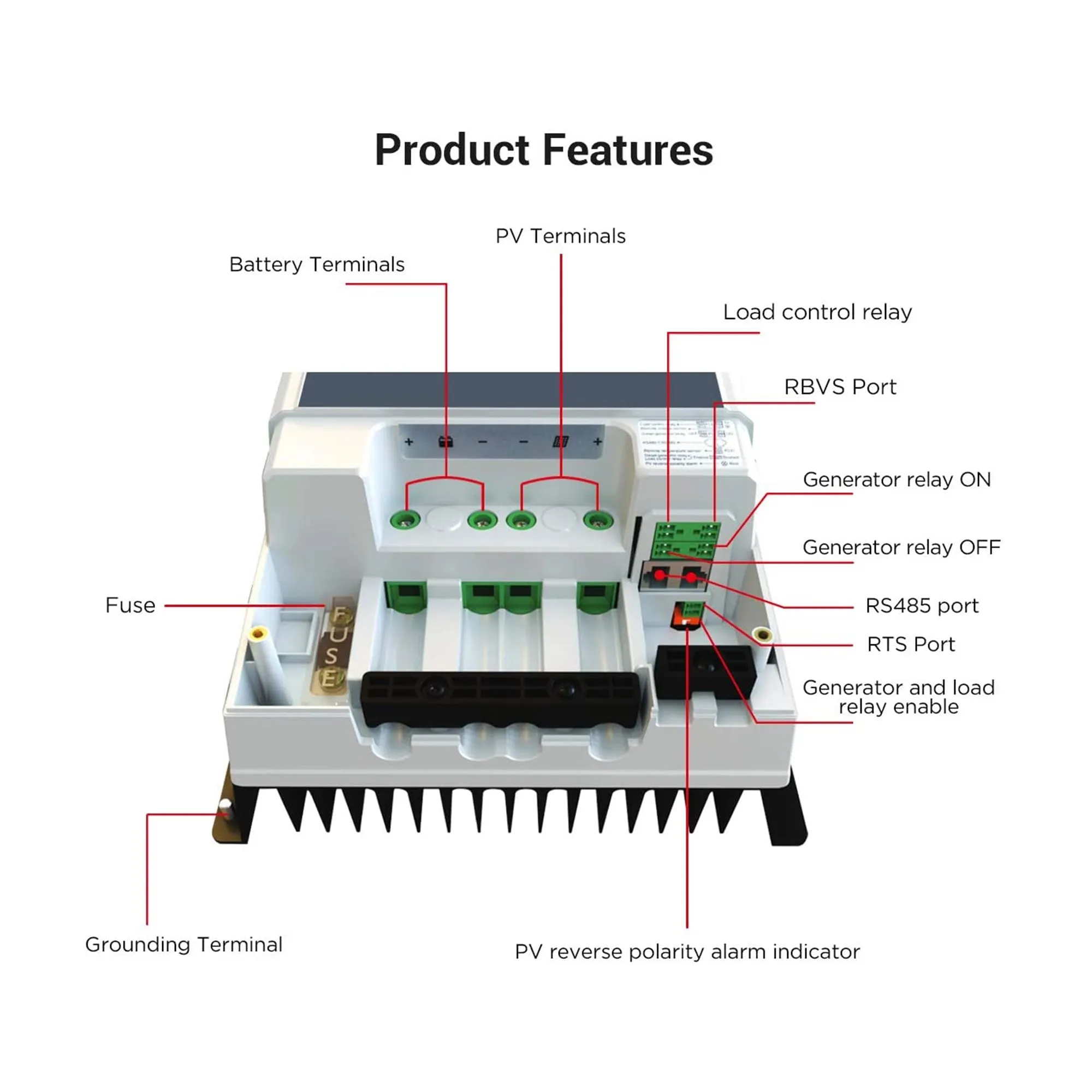

MPPT 60A Charge Controller

Rated charge current: 60A
Battery voltage range: 8V~68V
Max.PV open circuit voltage: 150V
Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
Common positive grounding design
Compatible with Various Deep Cycle Battery options: Sealed(Default)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries.

Package List:
