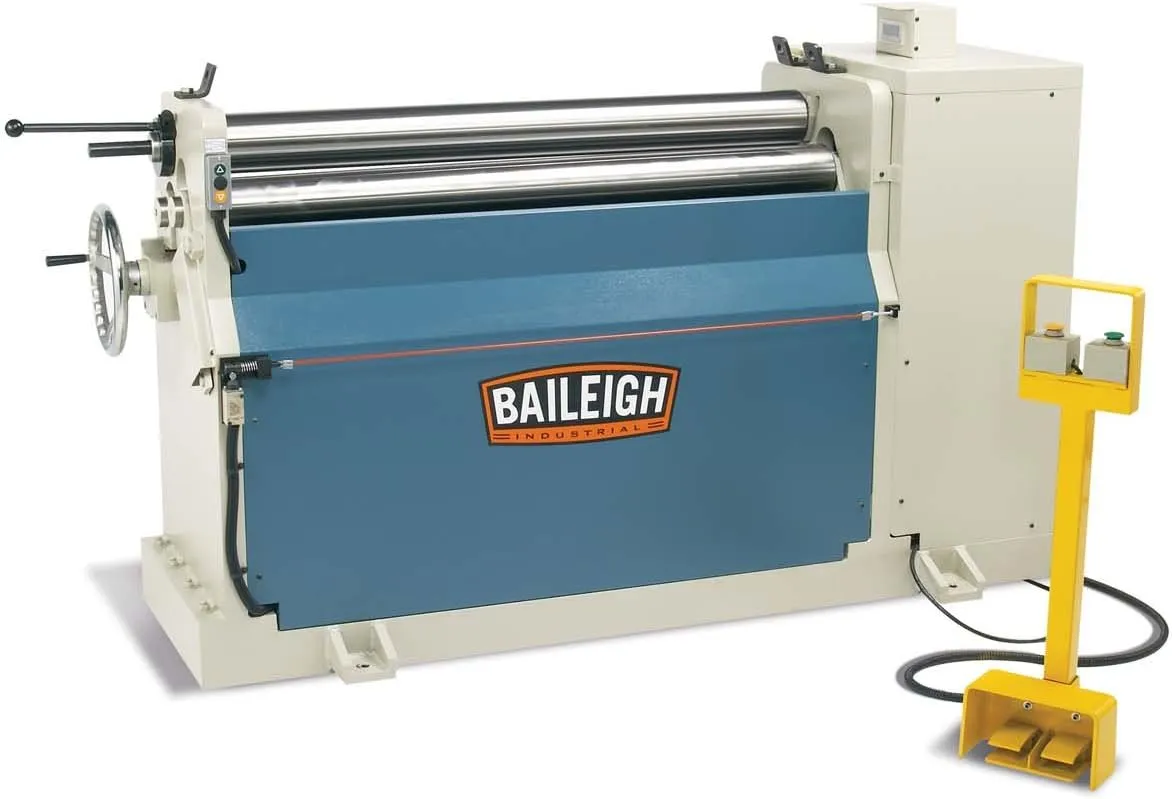

Baileigh single pinch hydraulic plate roll is a great roll former that can form 9 gauge mild steel to a 7-inches ring on its full length of 4-feets. The plate roll is operated entirely by an industrial grade hydraulic system. A 2 hp 220 volt three phase motor controls the system which runs the movement of the back roll as well as the rolling of all three forming rolls. Since all three rolls are driven, this cuts down on forming time that the operator has to spend on each job. The operation of the hydraulic plate roll is all done on a convenient foot pedestal. Once the pinch is set the foot pedal contains forward and reverse pedal as well as buttons to control the up and down movement of the back roll. A digital readout is also provided to identify the position of the back roll as well. If you have projects that need to form cones, the plate roll has an optional coning attachment available. For safety, the plate roll has emergency stop cable on the front and back of the machine. Roll speed: 5.85 rpm; upper roll diameter: 4-3/4-inches; roll adjustment back: hydraulic; minimum forming diameter: 7-1/8-inches; motor: 2 hp; mild steel capacity: 9 gauge (0.150-inches); forming width: 48-inches; power: 220 volts/3-phase.
