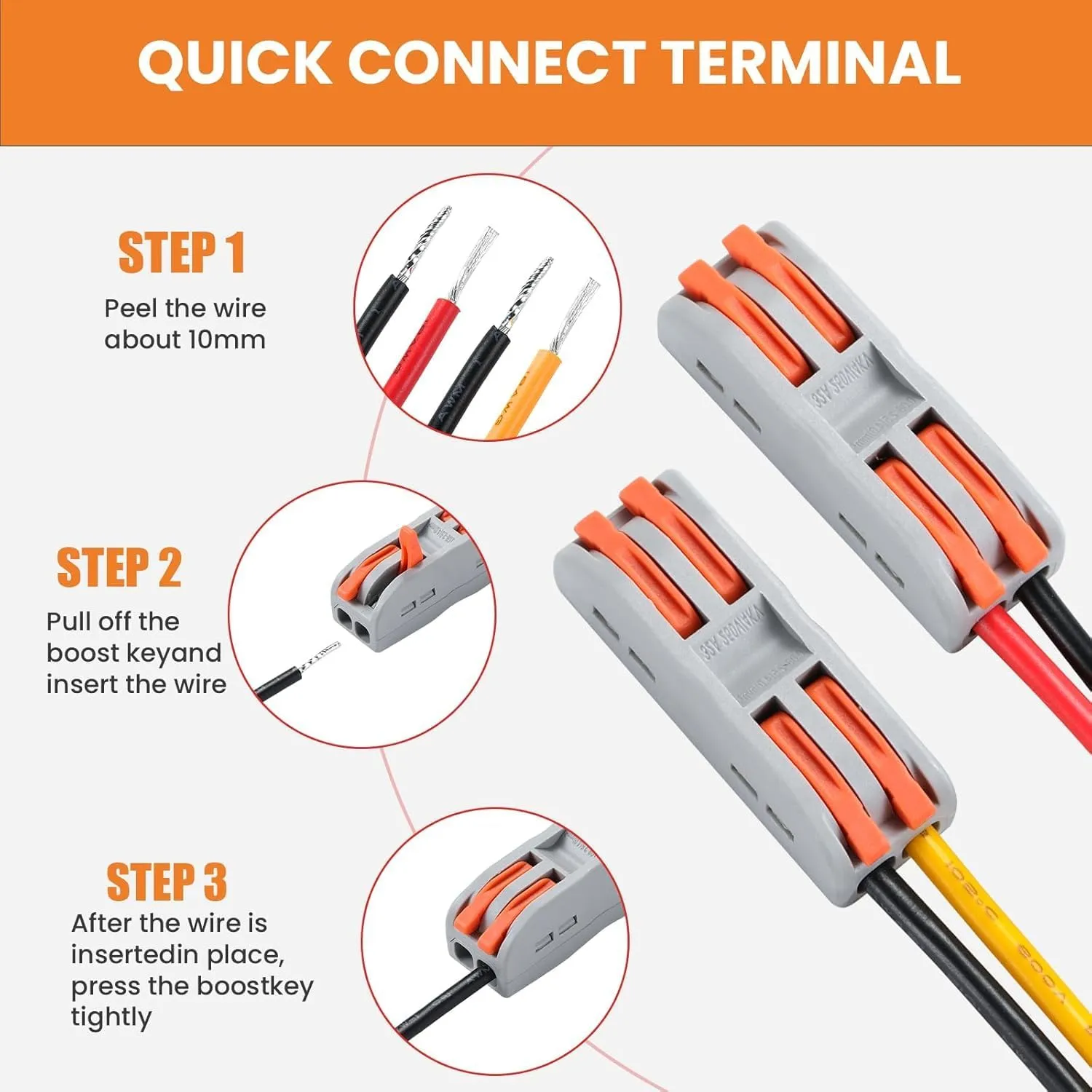

- 9-32V to 12V DC Voltage Transformer: Input range: 9V to 32V; output voltage: 12V (fixed output); output current: 5A; output power: 60W (MAX). Be sure to insulate the wire 0.4 inches (10 mm or so) and insert it into the plug when installing.

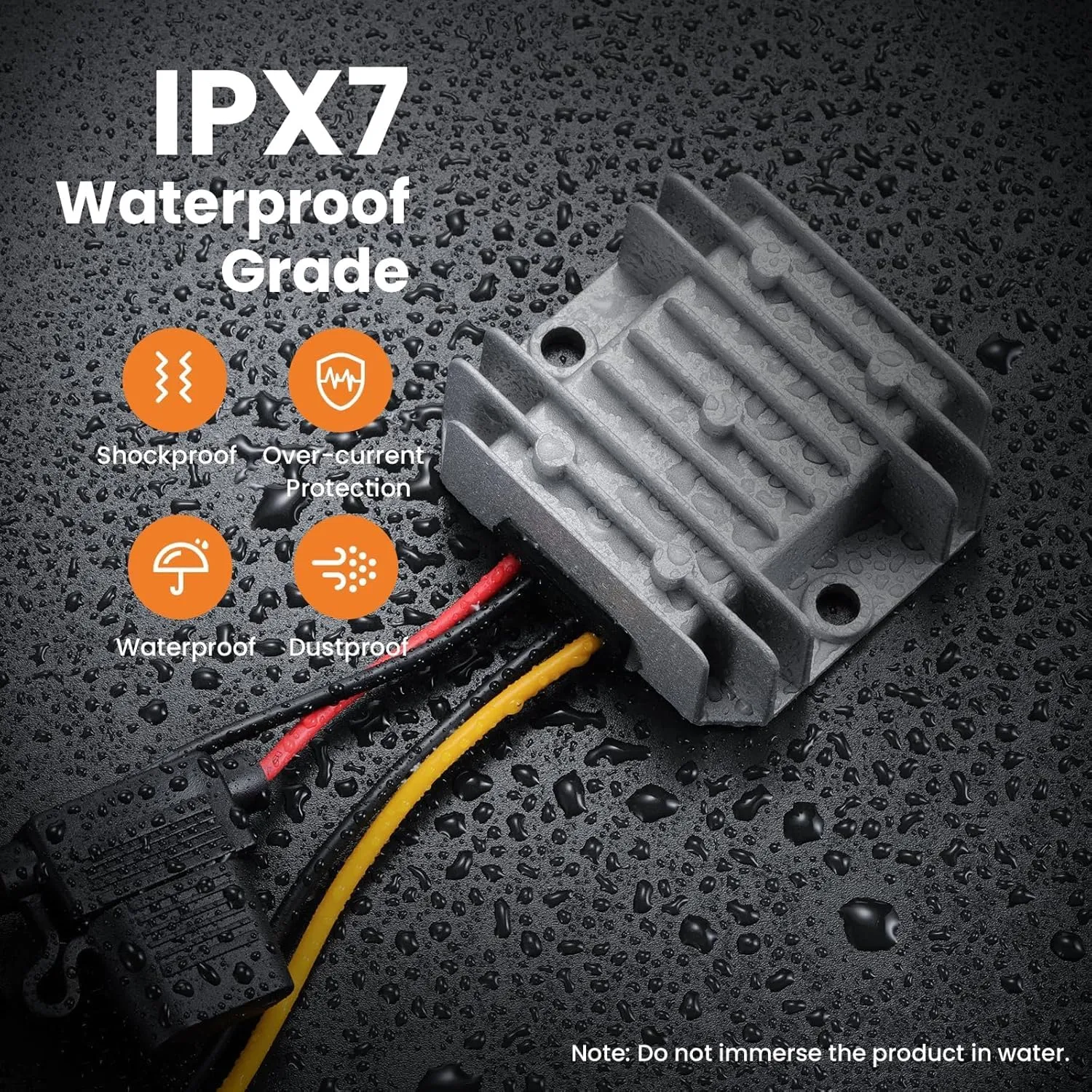

- Heat Dissipation Performance: The 9-32V to 12V voltage regulator has IP67 waterproof classification, compact aluminum housing, epoxy resin potting, 100% waterproof, dustproof, shockproof, better heat dissipation performance. Perfect for marine navigation equipment and off-grid refrigeration systems.
- Intelligent Protection: Assembled with smart chip, equipped with intelligent overcurrent /overload/low load/short circuit/overheat protection by using the 9-32V to 12V power transformer voltage. Essential for autonomous farm robots.
- Widely Application: The 9-32V to 12V DC voltage converter is widely used in the fields of automotive, photovoltaics, industrial plants, motor vehicles, boats, agricultural machinery, camping, mobile structures, hobby and DIY etc.

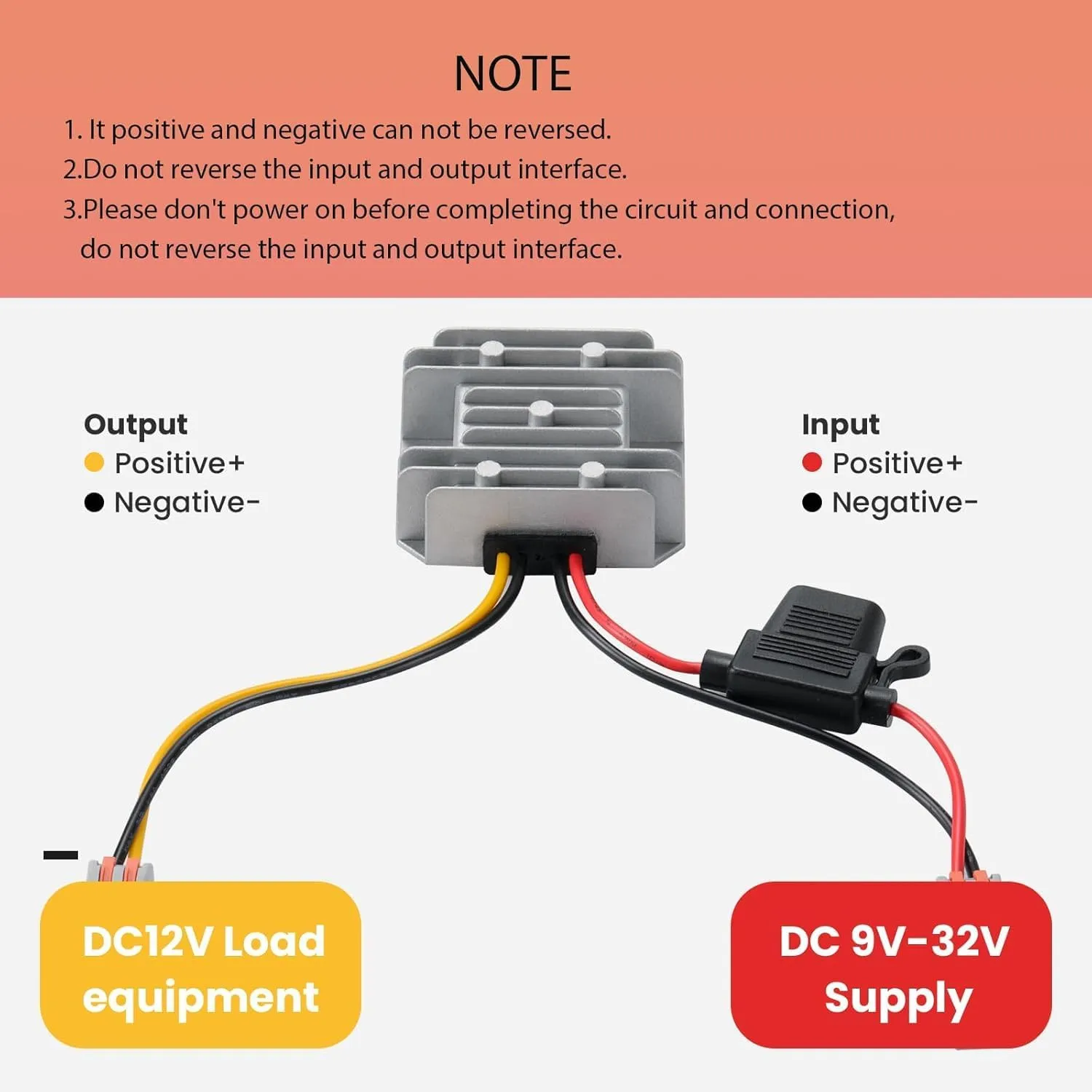

- Please Note: The load connected to the transformer converter output should not exceed the specified maximum load. (Any greater load will damage the buck converter). The 9-32V to 12V DC power converter adapter does NOT have input reverse protection, pay attention to the input correct, negative reverse, will lead to permanent damage to the product.

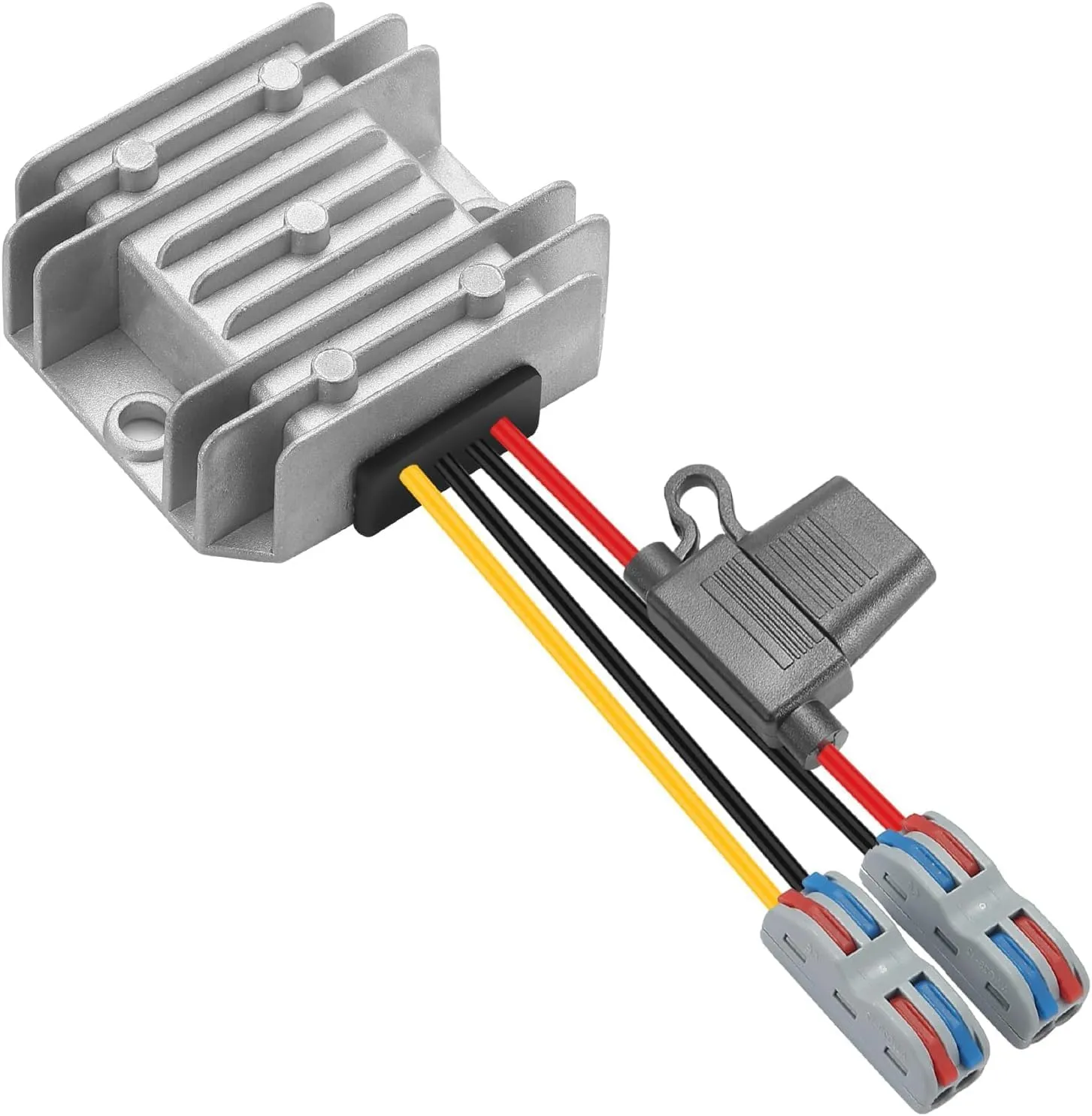

DC-DC 9-32V to 12V 5A Buck Converter - 60W Step-Down Voltage Regulator with IP67 Rating

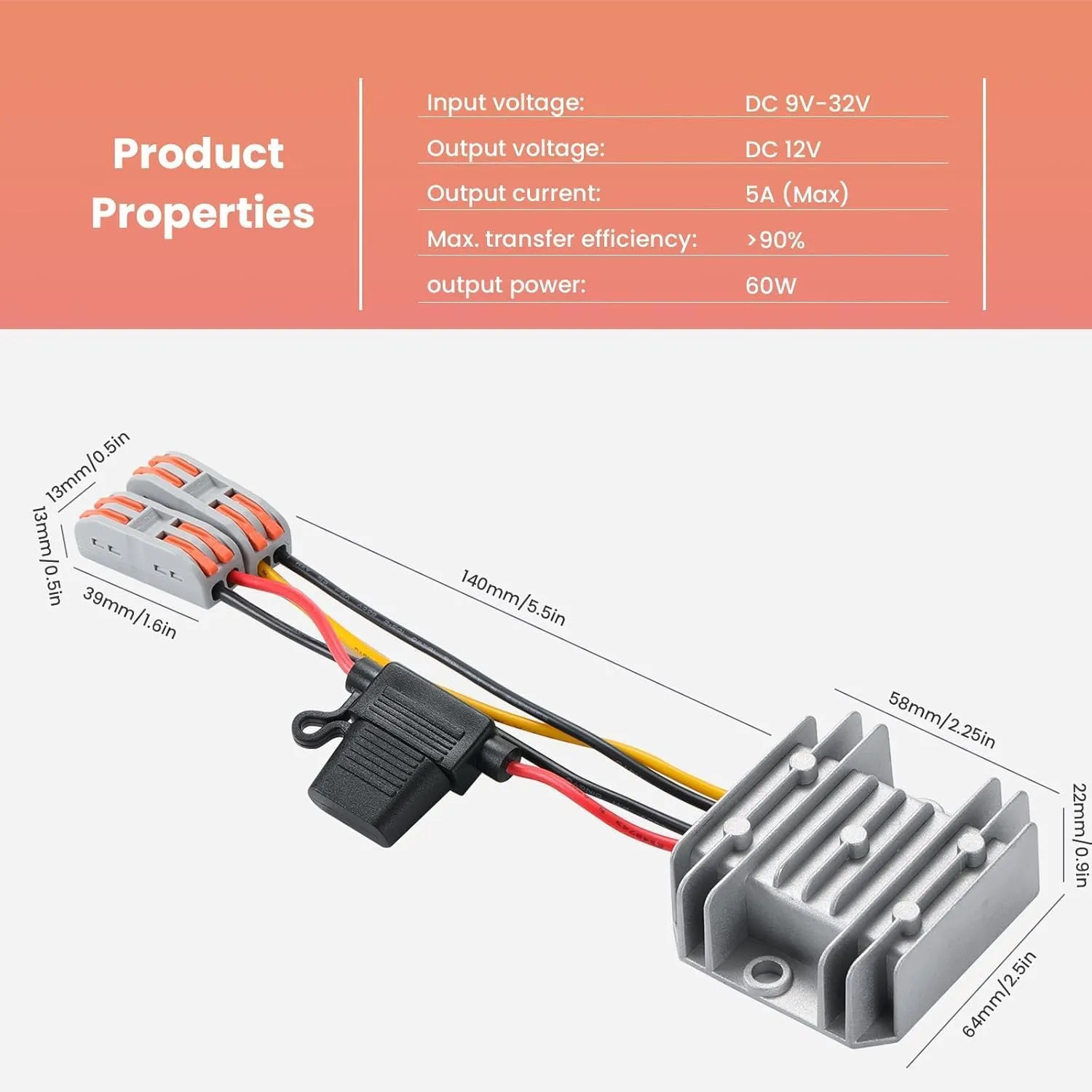

Electrical Parameters:
Input Voltage Range: 9-32V DC
Rated Input: 12V/24V
Conversion Efficiency: 95%
Input Wiring: 15-16CM
Output Characteristics:
Stable 12V DC Output (Precision regulated)
Max Current: 5A
Power Capacity: 60W MAX
Voltage Regulation: ±2% (No-load), ±3% (Full load)
Standby Current: ≤40mA (Low power mode)
Technical Specifications:
Environmental Testing Standards:
Operating Conditions: 15℃~35℃ ambient temperature
Humidity Range: 45%~75% RH
Safety & Protection Features:
IP67 waterproof rating
Overcurrent/Overvoltage protection
Short-circuit auto-recovery
No reverse polarity protection
Critical Usage Warnings:
Absolute maximum 60W load capacity
Requires 10A fuse on input side
Not for use with AC power sources
Professional installation recommended
Package Includes:
1× 12V/24V to 12V 5A DC-DC converter
