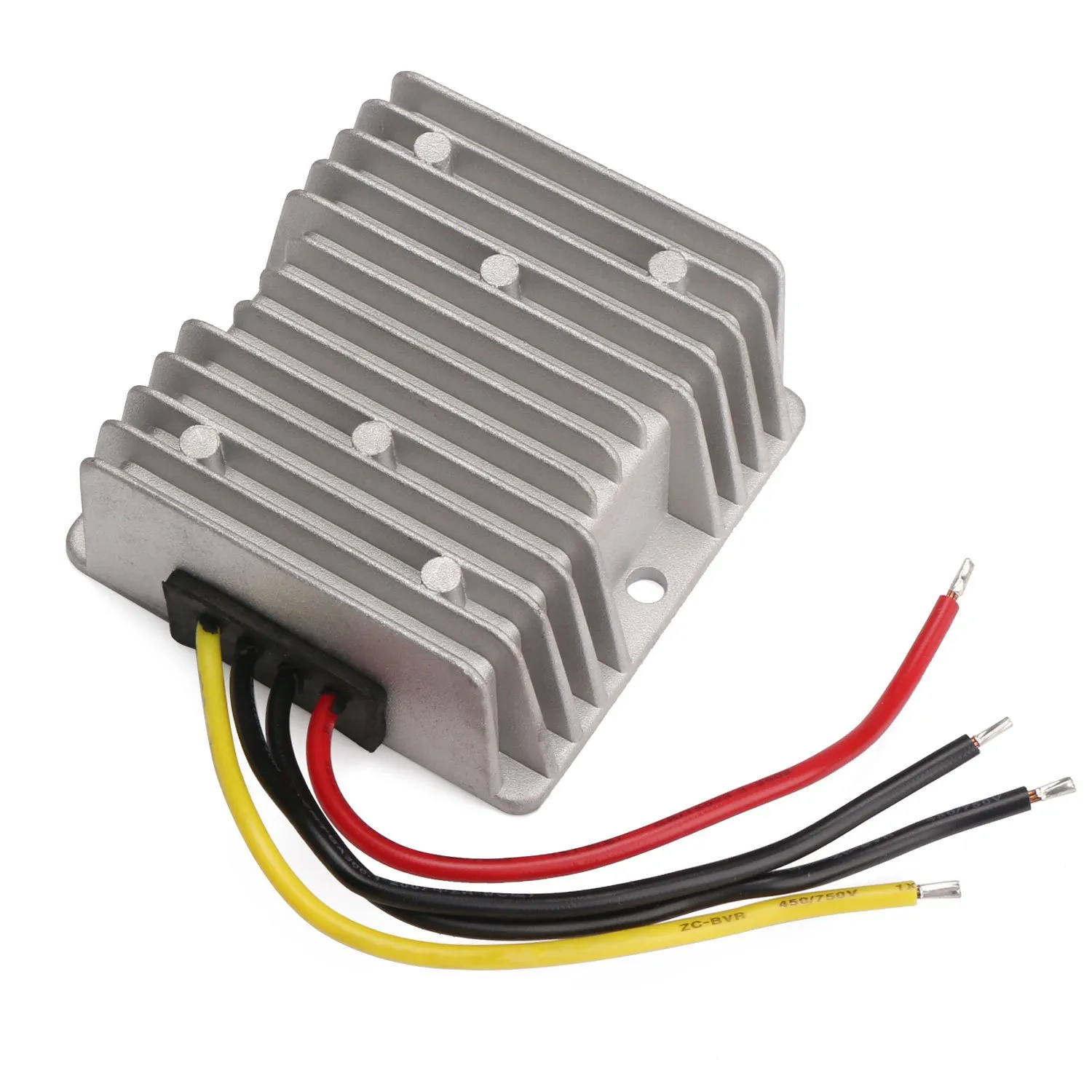

- Voltage reducer 24/36/48V to 12V, 10A, input DC 24-60V, 120W, made of first class aluminium.
- Compact and solid design, wiring diagram labeled on the back, easy to wire up, no humming or shutdown during using.
- Commonly used for radio, speaker system, club car, electric bike, solar panel, led lights an so on.
- With the protection of input momentary high voltage,output over current and short circuit,over heat.
Parameters:
Input Voltage: DC36V(wide range24V-60V)
Output Voltage: DC12V
Output Current: 10A 120W 20A(max)
Conversion Efficiency：over 93%
Ripple：100MV
Operating Temperature：-40℃ ～ 85℃ (Industrial class)
Dimension：74*74*32mm
Weight：0.3KG
Features:
Imported main components, efficient power, Stable performance
Anti-shock,dampproof, anti-dust
High voltage protection, output over current protection, output short circuit protection, chip overheating protection.
Wiring Instruction：
Input：red( ) black(-)
Output：yellow( ) black(-)
Package Includes:
1 x 24-60V to 12V Buck Converter
- Is Discontinued By Manufacturer : No
- Package Dimensions : 5.75 x 3.78 x 1.54 inches; 0.01 ounces
- Date First Available : November 10, 2015
- Manufacturer : DROK
- Country of Origin : China
