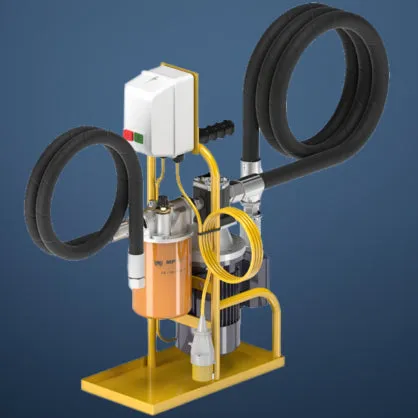

Technical Details for the GRF 261
The GRF 261 Mobile Filtration Unit sets a new standard for hydraulic fluid care. With a robust 26 L/min flow rate and continuous operation at 5 bar, it excels in filling and refilling filtered hydraulic fluids and lubrication tanks. Ideal for systems with high contamination, its off-line connection to the tank allows for fast flushing during start-up or additional filtration support. The unit's light and compact design accommodate diverse applications, providing efficient and easy maintenance. Equipped with MPS100 filter head filters and optional water removal, the GRF 261 ensures reliable performance. Compatible with mineral oil, it includes features like an electric control box and visual indicator for user convenience.
Designed and manufactured by MP Filtri, the GRF 261 provides a lightweight, and portable solution for various applications.
| Pump | Gear Pump |
| Electric Motor | 0.55kW 110/230 Volt Single Phase |
| Flow Rate | 26L/min |
| Viscosity Range | 10 cSt to 120 cSt |
| Inlet Filter | 250 µm metal mesh strainer |
| Outlet Filter | 1/3/6/10/25 µm ß>1000 flow through the element Out/In |
| Bypass Indicator set at 1.75bar | Visual clogging indicator gauge - pop-up manual reset |
| Operating Temperatures | Fluid: 0oC to 80oC Ambient: 0oC to 45oC |
| Protection Class | IP 55 |
| Seal | NBR |
| Fluid Compatibility | Mineral Oil |
| Suction / Pressure Hose | SAE100R4 1" swaged female 2000mm hose SAE100R4 3/4" swaged female 2000mm hose |
| Dimensions | Weight: 18kg Dimensions: 697mm (H) x 400mm (D) x 215mm (W) |
| Manufacturer | MP Filtri |
| Filter element - Standard length: Inorganic microfiber element | CS 100 A01 A P01 - 1 µm absolute CS 100 A03 A P01 - 3 µm absolute CS 100 A06 A P01 - 6 µm absolute CS 100 A10 A P01 - 10 µm absolute CS 100 A25 A P01 - 25 µm absolute |
| Filter element - Standard length: Wire-mesh element | CS 100 M25 A P01 - 25 µm CS 100 M60 A P01 - 60 µm |
| Filter element - Extended length: Inorganic microfiber element | CS 150 A01 A P01 - 1 µm absolute CS 150 A03 A P01 - 3 µm absolute CS 150 A06 A P01 - 6 µm absolute CS 150 A10 A P01 - 10 µm absolute CS 150 A25 A P01 - 25 µm absolute |
| Filter element - Extended length: Wire-mesh element | CS 150 M25 A P01 - 25 µm CS 150 M60 A P01 - 60 µm |
