Important Notice:
5V2A， 9V1A and 12V1A is optional, For system limitation, When you order, US style show 5V2A, EU style show 9V1A， UK style show 12V1A， Pls choose you wanted items. if any special requests for power adapters, pls leave message in message center, thanks!

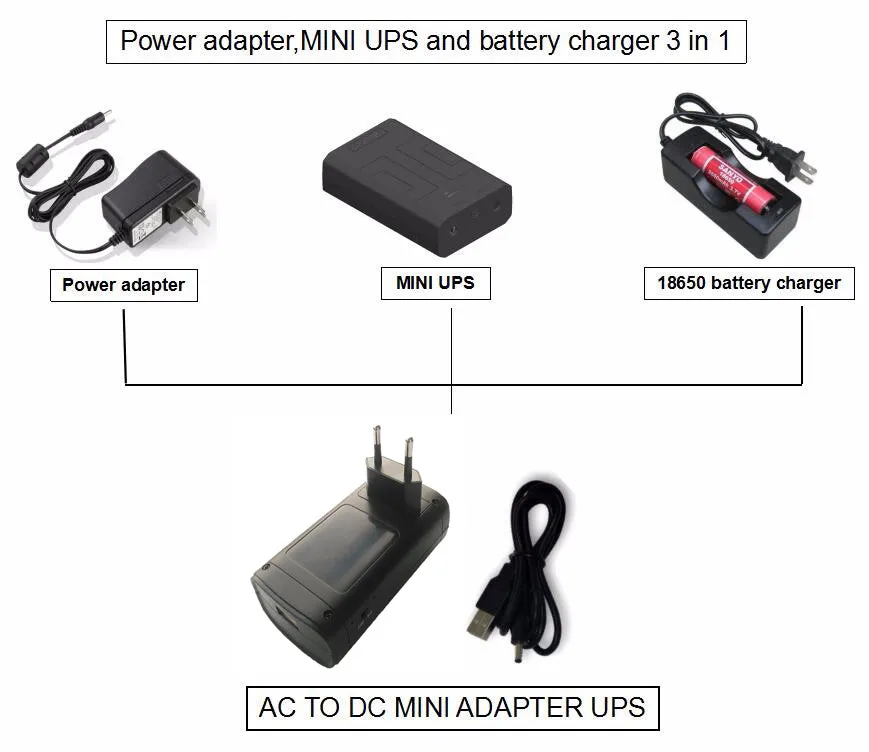

Product Concept and Application:
Power adapter and mini ups 2 in 1 is anti-surge online power DC transformer = AC to DC mini UPS Adapter (Transformer).it's a DC UPS Adaptor designed to provide emergency power backup to all kinds of DC power equipment such as routers, modems, set-top box, VOIP phone systems, surveillance system, alarm system and many critical telecom equipment. it can provide hours of operation during power failure at a low price of a traditional UPS.
Mini UPS Application:
Mini ups widely use for fingerprint attendance machine, Fire safety system, security monitoring system, wireless camera, CCTV camera ,personal treatment system,Door security system, personal data assistant, emergency lighting, Alarm system, personal communication systems, radio, digital cameras, camcorders, video camera,Bluetooth devices, set-top box, VOIP phone systems, surveillance system, alarm system and many critical telecom equipment.
Advantages:
It can use to a DC power supply for variety of Network Equipment, Low-Watt computers, Electronic Products, you can have a variety of advantages after using online power transformer.
1. The anti-surge protection.
2. Online non-stop Power Supply when electric power is off.
3. Smaller Size, Lighter Weight, Reduce costs BUT with UPS function.
4. Anywhere can display your equipment in none electric power environment,
5. For user in electric power unstable region, they would like to use the product with anti-surge protection.
6. For user in stable electric power supply region, they would like to continue use product when electric power is off.
7. The same conditions for on line UPS, we are saving more energy efficient 10%~ 30% than traditional UPS.
Product Features:
1.Power adapter UPS
2.Anti-Surge Protection
3.Replaceable battery environmentally friendly and durable
4.Global support direct charging voltage,AC100~240V 50~60Hz directly charge.
5.High Security,Use ONLINE-UPS online uninterruptible power system design to protect device.

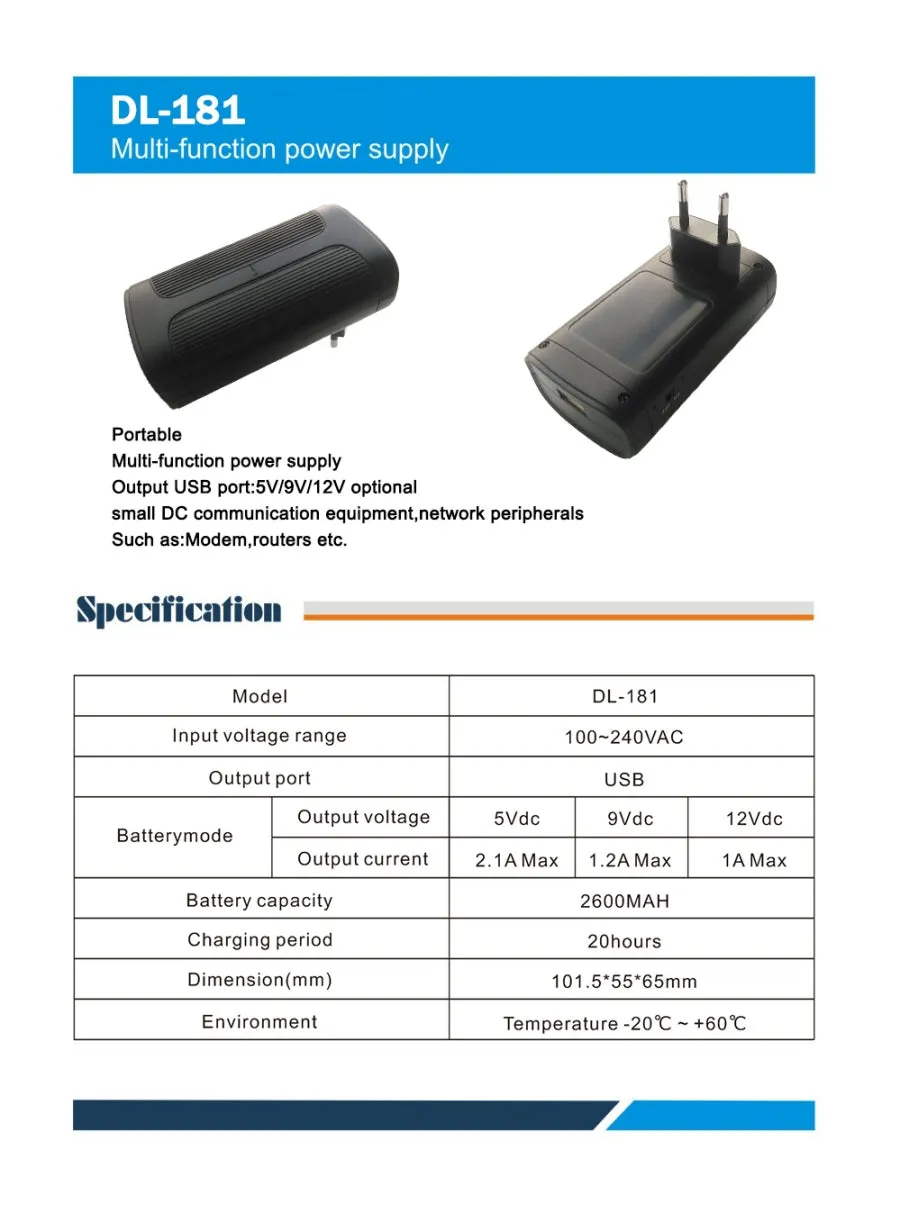

Specification:
Input Voltage/Frequency AC90~265V 50~60 Hz
Output Voltage 5VDC ± 5%
Max. Power Output 10W (2.1A)
Battery Lithium-ion Battery
Battery Type 18650*1PC
Voltage 3.7VDC
Capacity 2600mAh
Charge Time 3 hours recover to 90% capacity
Battery Life Replaceable battery
Protection
Circuit Over-discharge protection
Overcharge and short circuit protection
Battery Reverse connect protection
Input/Output Short circuit of fuses and overload protectio
LED Indication/Switch
No battery Not insert to AC power supply A No indication
Insert to AC power supply B Green light
With battery Not insert to AC power supply A Blue light on.Red light on while low voltage,emergency output activate.
B Red light on while low voltage
Insert to AC power supply A Red light on. Red light on while low voltage,turn to green while fully charged
B Red light on. Red light on while low voltage,turn to green while fully charged
Battery installed backwards or damaged No indication

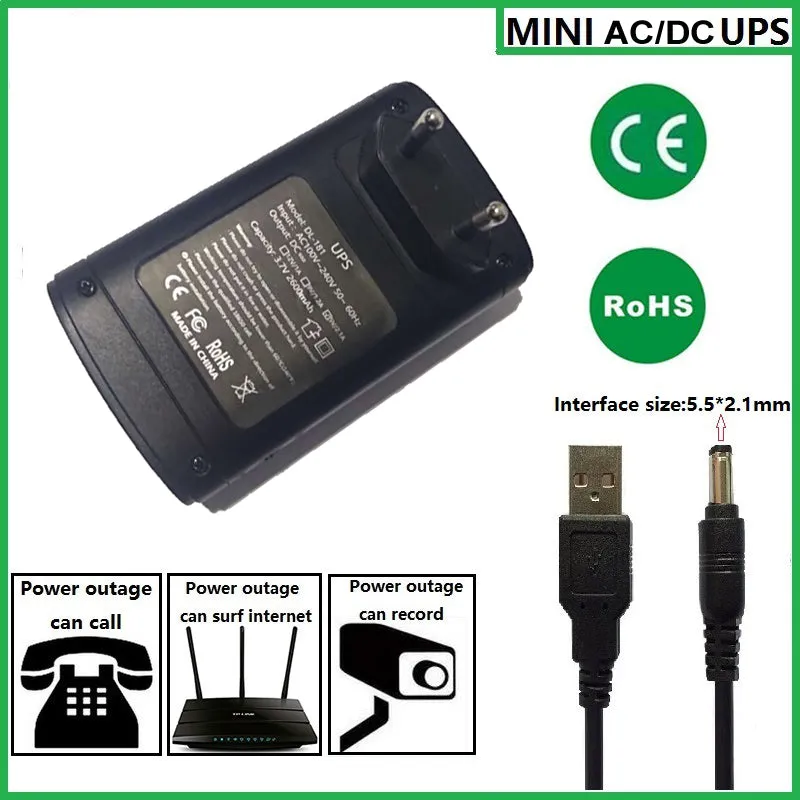

Ouput cable 1m Length, USB to DC Plug(5.5*2.1mm/5.5*2.5mm/3.5*1.35mm)

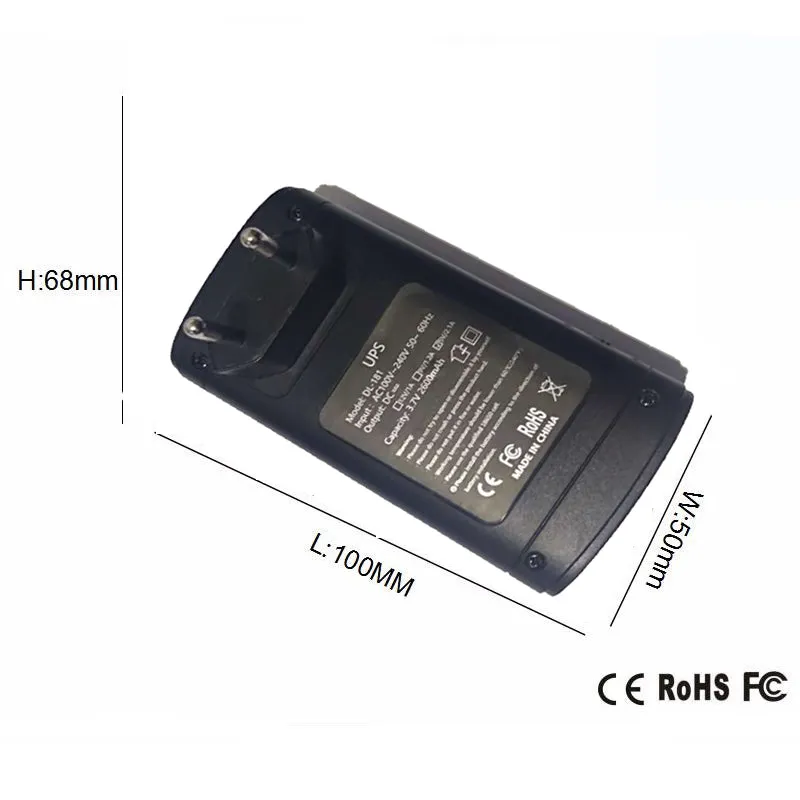

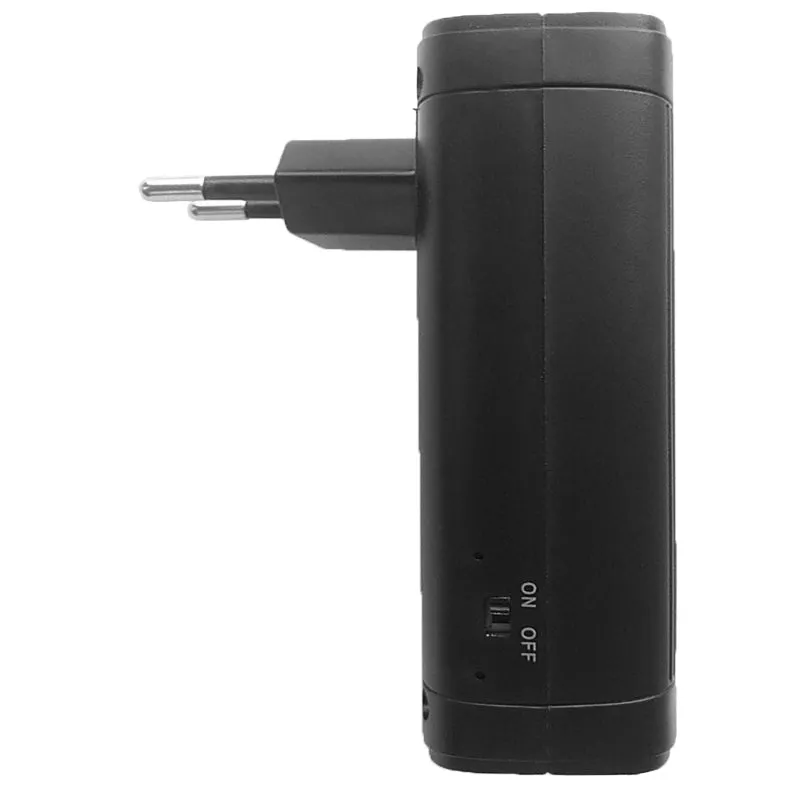

Dimension, Lx W x H (mm) 100 x 50 x 68（GS plug）/ 100 x 50 x 54.5（UL plug）
Net Weight（Withhout Battery） (g) 160g
Output Voltage 5VDC ± 5%
Max. Power Output 10W (2.1A)
Battery Lithium-ion Battery
Battery Type 18650*1PC
Voltage 3.7VDC
Capacity 2600mAh
Charge Time 3 hours recover to 90% capacity
Battery Life Replaceable battery
Protection
Circuit Over-discharge protection
Overcharge and short circuit protection
Battery Reverse connect protection
Input/Output Short circuit of fuses and overload protectio
LED Indication/Switch
No battery Not insert to AC power supply A No indication
Insert to AC power supply B Green light
With battery Not insert to AC power supply A Blue light on.Red light on while low voltage,emergency output activate.
B Red light on while low voltage
Insert to AC power supply A Red light on. Red light on while low voltage,turn to green while fully charged
B Red light on. Red light on while low voltage,turn to green while fully charged
Battery installed backwards or damaged No indication
Ouput cable 1m Length, USB to DC Plug(5.5*2.1mm/5.5*2.5mm/3.5*1.35mm)
Dimension, Lx W x H (mm) 100 x 50 x 68（GS plug）/ 100 x 50 x 54.5（UL plug）
Net Weight（Withhout Battery） (g) 160g
Installation and usage:

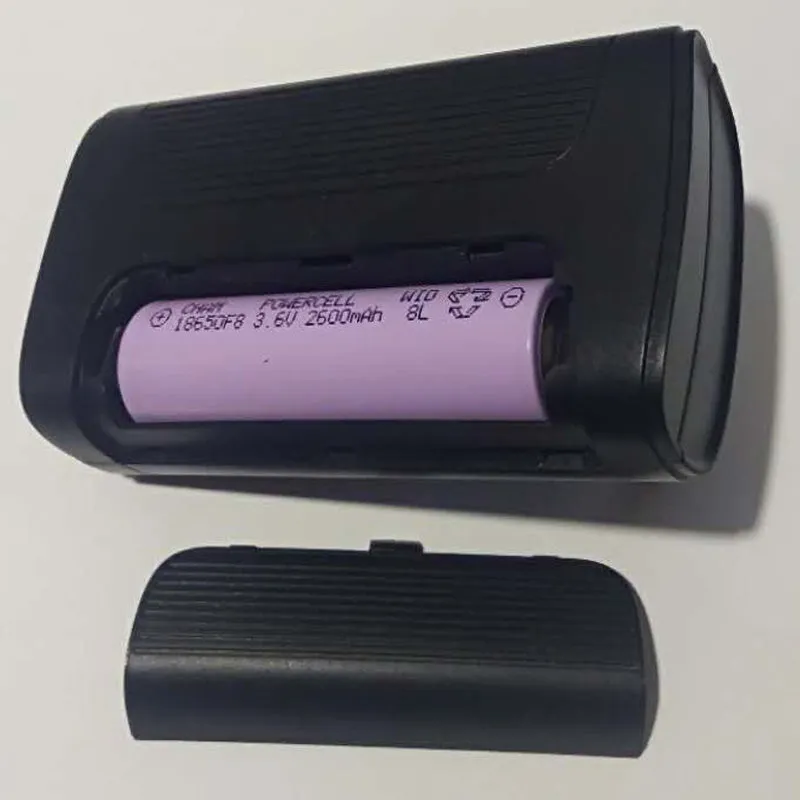

1.Install the battery according to the anode and cathode symbol,if battery direction installed backwards,it will not be able to get the backup power supply when power failure.
2.Connect to AC power, push the switch to "A", the UPS will automatically transferred to emergency power supply mode. When push the switch to "B", functioning stop.
3.Test the function of the UPS,stop AC power supply,red light off,if the blue light on,it means the UPS is working properly.
4.If no indication,please cheack the anode and cathode direction of the battery.
5. The switch is designed for unnecessary power loss caused by battery virtual power output.It also can be used to turn off the UPS output and turn on the UPS when needed.
6.When overload,the UPS will start automatic protection and stop power input and output,now you just need to pull the plug and insert the plug again.
7.When the UPS is connected to AC110-240V power,it can supply power to device and charge itself at the same time.
8.When the power is less than 20%, the light of "A" is red.
Attention:
1.Please pay attention to the direction of battery while installing.
2.The UPS is not waterproof,please use it indoors.If you need to use it outdoor,please take waterproof measures .
3.For safety,please use qualified batteries, do not throw the UPS into water or fire,do not try to open and modify it.
4.Please charge it in time when low battery.
5.If long time did not use this mini UPS, suggest 3~5months to charge it once.
