Off-grid system: 2.73kWp Solar Panel Array (6x 455W), 14.4kWh (7.2kWh usable) Battery Bank, and Inverter/Charger. Every Kit set includes a free consultation with a Solar Engineer to help with selecting the kit set/customisation or advice on installation and certification. Choose “Review Order” At checkout. Nationwide shipping.
Description
The AA Solar Waihi Studio Off-Grid Solar System is perfect for small lodgings such as tiny homes, sleepouts, and granny flats (used full or part-time). This System is designed for situations where daily power usage does not exceed 3-5kWh, and his System will supply power where the continuous load max is 2400W AC.
Every Kit set includes a free consultation with a Solar Engineer; this call can help select the kit set/Customisation or provide advice on installation and certification. Choose "Review Order: as checkout.
Tell Me More
This Waihi Studio Off-Grid Solar PV System is ideal for people expecting to use an average of 3-5kWh/day. The load required is 2.4kVA continuous and up to 4.8kVA 5sec peak (values at 25°C). It comes with a 2.73kW Solar Array and a 14.4KWh (7.2kWh usable) Battery bank.
At the heart of this Off-Grid System is the inverter/charger, which provides a central unit for monitoring and controlling all aspects of the System.
AA Solar customise Solar Kit sets to suit your specific power needs and location.
How Much Power Will I Have?
Your System has six panels; the 2.73kW solar arrays' average daily power production will be between 4-6kWh in winter and up to 9-12kWh in summer.
Pro Tip: For year-round living, we highly recommend adding an auto-start generator. To provide backup power during periods when the weather is bad, and your total solar generation is not enough to cover your energy needs and keep your battery bank full.
What Can Be Powered?
This System can meet all the power requirements of a typical tiny home with gas cooking and hot water, provided that the total power draw at any one time does not exceed 2.4kVA continuous.
- Up to 10 LED Lights
- Small under bench or Dometic Fridge
- TV with power rating less than 400W (LED/LCD up to 40")
- All small appliances such as jugs, toasters, and microwaves, as long as they have a maximum power rating under 1,000W, should be used one at a time.
- Small washing machine on a cold wash
This System can not support high-wattage equipment such as electric induction cooking and ovens.
Note: AC loads must stay within the inverter's limitations.
° = Energy efficient
*We will provide a detailed estimate tailored to your specific needs; prices are an indication. They are subject to change due to customisation, shipping, or supplier price changes. All PV generation figures are Auckland-based, with PV modules facing True-North pitch without shading. There is no system installation, inspection, commissioning, or maintenance allowance in this kit price. Installations shall be in accordance with NZ law, regulations and associated standards. Systems are wired to the main distribution board. It is highly recommended that any system with less than four days of autonomy have an auto-start generator installed.
^ For Off-Grid PV Systems, the way you use power throughout the year and over a 24-hour period will alter the system's performance. Normalised profiles have been used to provide kit set examples.
Inclusions

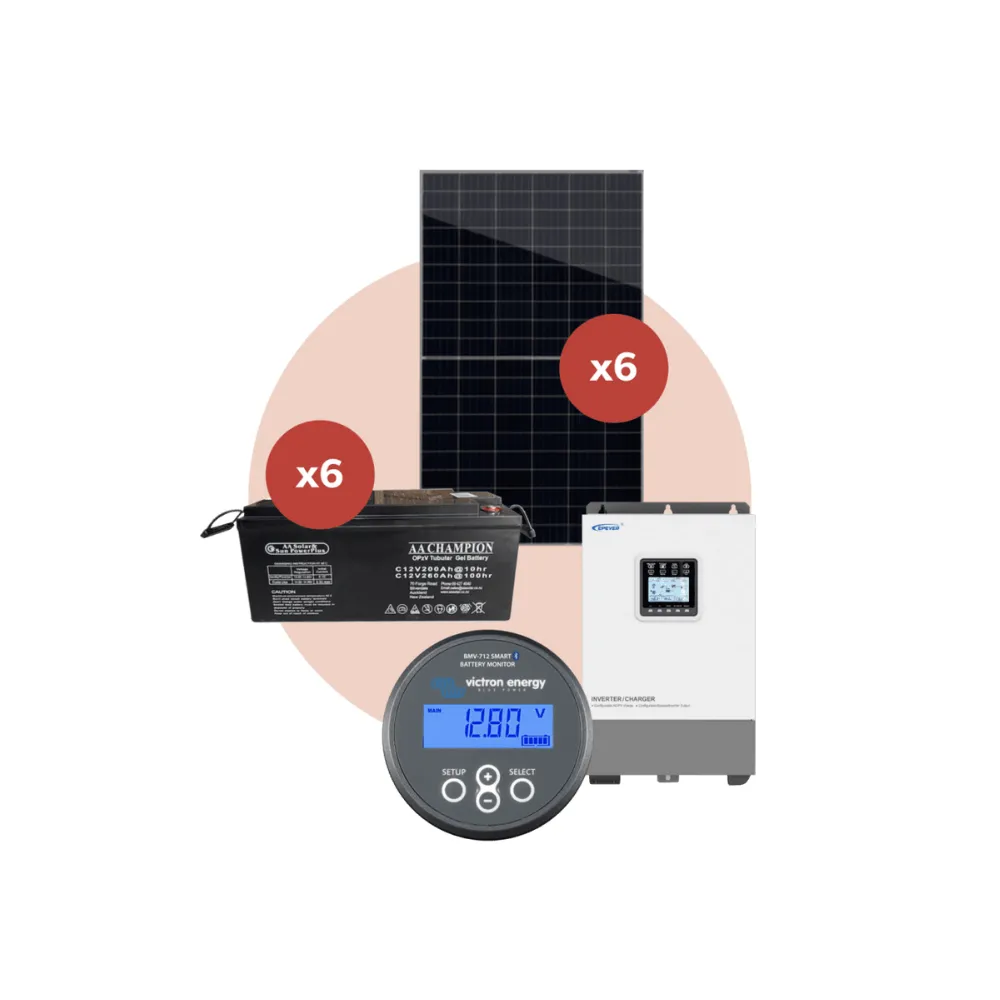

Waihi System Inclusions
- Fully integrated Off-Grid Power System
- 6 x 455W Solar Panel Silver PERC Half Cell
- 14.4kWh (7.2kWh usable) Battery Bank
- Inverter/Charger with Inbuilt Sensor and Solar Controller
- AC/DC Protection Switch Gear
- Flush Tin Mounting Kit
*Inverter and Batteries need to be housed in a watertight shed or similar
AA Solar reserves the right to swap out for similar parts without compromising quality or performance.
Warranties
PV modules – Twenty Five-year linear power and ten-year material & workmanship
Inverter/charger – Two years
Battery – Five-years Conditional Warranty
Mounting System – 10-years
Upgrades
Popular Upgrades
Our highly qualified solar engineers can tailor all systems to your individual needs. Our most common upgrade provides backup power for low-light days.
We can also lift the available power with a Lithium Battery/Inverter Package, which delivers more power while taking up less space.
